ORIGINAL PAPER
Effect of Wood-based Material Type on Drilled Hole Diameter
1
Faculty of Forestry and Wood Technology, Poznań University of Life Sciences, Poland
Submission date: 2024-09-19
Final revision date: 2024-11-14
Acceptance date: 2024-11-21
Publication date: 2025-01-09
Corresponding author
Drewno 2024;67(214)
KEYWORDS
Furniture DesignEngineering Tolerancesfurniture manufacturingdrilling accuracyfitting of furniture partsfurniture assemblyengineering fit
TOPICS
ABSTRACT

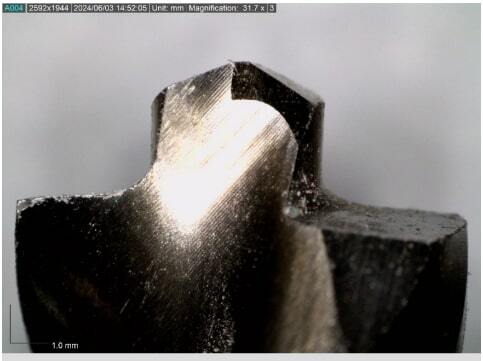

This study examines the influence of furniture board material type on real drilled hole dimensions. Five samples were fabricated from two medium-density fibreboards (MDF), two particleboards, and plywood. Fifteen holes were drilled in the side surface of each sample using a 12 mm drill bit, a rotational speed of 3000 rpm, and a feed rate of 0.67 mm/rev. For each hole, the diameter of the cylindrical plug gauge was identified to determine whether it could be inserted freely, partially, or not at all. The results showed that in each case the effective hole diameter was smaller than the nominal drill diameter. The smallest plug gauge diameters were observed in plywood (a plug gauge with a diameter exceeding 98.8% of the drill bit diameter could not be freely inserted). Particleboards exhibited varying usable hole diameters (99.2-99.6%), while MDF showed the largest diameters of freely insertable plug gauge (99.6%). The observed differences between the plug gauge diameter and the nominal drill bit diameter can be attributed to variations in material structure. Adhesive layers in plywood and structural changes induced by drilling in particleboard likely contribute to the reduced practical hole diameter. In contrast, MDF's more uniform structure results in minimal deviations. These differences in hole diameter are crucial for the design of self-assembly furniture, as they can impact the fit and assembly process.
REFERENCES (37)
1.
Ballast, D. K. (2007). Handbook of construction tolerances (2nd ed.). John Wiley & Sons. https://www.wiley.com/en-us/Ha....
2.
Bardak, T. (2018). Effects of different advanced engineering materials on deformation behaviour of wood structural materials. BioResources, 14(1), 180–192. https://doi.org/10.15376/biore....
3.
Bedelean, B., Ispas, M., & Răcășan, S. (2023). Combining Artificial Neural Network and Response Surface Methodology to Optimize the Drilling Operating Parameters of MDF Panels. Forests, 14(11), 2254. https://doi.org/10.3390/f14112....
4.
Bedelean, B., Ispas, M., & Răcășan, S. (2024). Optimizing Wood Composite Drilling with Artificial Neural Network and Response Surface Methodology. Forests, 15(9), 1600. https://doi.org/10.3390/f15091....
5.
Bedelean, B., Ispas, M., Răcășan, S., & Baba, M. N. (2022). Optimization of Wood Particleboard Drilling Operating Parameters by Means of the Artificial Neural Network Modeling Technique and Response Surface Methodology. Forests, 13(7), 1045. https://doi.org/10.3390/f13071....
6.
Cao, Y., Liu, T., & Yang, J. (2018). A comprehensive review of tolerance analysis models. The International Journal of Advanced Manufacturing Technology, 97(5–8), 3055–3085. https://doi.org/10.1007/s00170....
7.
Chen, M., Cai, Z.-G., Yang, Y.-Q., & Lyu, J.-H. (2015). Influence of fit tolerance between tenon width and mortise length on joint performance of oval-tenon manufactured by Alnus formosana wood. Manufacturing and Engineering Technology (ICMET 2014), 181–186. https://doi.org/10.1201/b17735.
8.
DoP. (2023). Deklaracja właściwości użytkowych sklejki / Declaration of Performance—DoP of Plywood (Declaration of Performance - DoP 2/2023; p. 3). Sklejka-Eko SA. https://www.sklejkaeko.pl/pobi....
9.
Eckelman, C. A. (1998). The Shrinking and Swelling of Wood and its Effect on Furniture (FNR 163; Forestry & Natural Resources, p. 26). Purdue University. Department of Forestry & Natural Resource. https://extension.purdue.edu/e....
10.
Eckelman, C. A., Haviarova, E., Kasal, A., & Erdil, Y. Z. (2017). Lower tolerance limit approach to equation-based rational design values for L-shaped mortise and tenon joints. Wood and Fiber Science, 49(2), 219–230. Scopus.
11.
Fabriciuss, J., & Ozola, L. (2020). Duration of load effects on development of deformations in bolted moment connection. 26th Annual International Scientific Conference “Research for Rural Development 2020,” 35, 234–240. https://doi.org/10.22616/rrd.2....
12.
Fu, W.-L., & Guan, H.-Y. (2022). Numerical and theoretical analysis of the contact force of oval mortise and tenon joints concerning outdoor wooden furniture structure. Wood Science and Technology, 56(4), 1205–1237. https://doi.org/10.1007/s00226....
13.
Górski, J. (2022). The Review of New Scientific Developments in Drilling in Wood-Based Panels with Particular Emphasis on the Latest Research Trends in Drill Condition Monitoring. Forests, 13(2), 242. https://doi.org/10.3390/f13020....
14.
Jeang, A. (1997). An approach of tolerance design for quality improvement and cost reduction. International Journal of Production Research, 35(5), 1193–1211. https://doi.org/10.1080/002075....
15.
Jegorowa, A., Kurek, J., Kruk, M., & Górski, J. (2022). The Use of Multilayer Perceptron (MLP) to Reduce Delamination during Drilling into Melamine Faced Chipboard. Forests, 13(6), 933. https://doi.org/10.3390/f13060....
16.
Kulman, S., Boiko, L., Bugaenko, Y., & Sedliačik, J. (2021). Creep life prediction by the basic models of deformation-destruction kinetics of wood-based composites. Acta Facultatis Xylologiae Zvolen, 63(2), 39−53. https://doi.org/10.17423/afx.2....
17.
Liu, K., Du, Y., Hu, X., Zhang, H., Wang, L., Gou, W., Li, L., Liu, H., & Luo, B. (2024). Investigating the Influence of Tenon Dimensions on White Oak (Quercus alba) Mortise and Tenon Joint Strength. Forests, 15(9), 1612. https://doi.org/10.3390/f15091....
18.
Pakuła, W., Prałat, B., Potok, Z., Wiaderek, K., & Rogoziński, T. (2024). Energy Consumption for Furniture Joints during Drilling in Birch Plywood. Polymers, 16(8), 1045. https://doi.org/10.3390/polym1....
19.
PDS. (2022). Płyty wiórowe surowe / Raw particleboards (p. 8) [Product data sheet]. Swiss Krono. https://www.swisskrono.com/pl-....
20.
PDS. (2023a). Eurospan E1 P2 CE EAC (Technical Datasheet Rec.: 107; p. 2). Egger Brilon GmbH & CO. KG. https://www.egger.com/get_down....
21.
PDS. (2023b). MDF E1E05 TSCA ST CE EAC (Technical Datasheet Rec.: 504; p. 2). Egger Brilon GmbH & CO. KG. https://www.egger.com/get_down....
22.
PDS. (2023c). Płyty MDF, LDF, HDF / MDF, LDF, HDF Boards (p. 8) [Product data sheet]. Swiss Krono. https://www.swisskrono.com/pl-....
23.
Podziewski, P., Śmietańska, K., & Górski, J. (2021). Experimental Verification of a Highly Simplified, Preliminary Machinability Test for Wood-Based Boards in the Case of Drilling. Forests, 12(10), 1334. https://doi.org/10.3390/f12101....
24.
Porankiewicz, B. (2002). Tribochemical Reactions of Cutting-Edge Material During Secondary Wood-Product Cutting. Tribology Letters, 13(2), 141–145. https://doi.org/10.1023/A:1020....
25.
Porankiewicz, B. (2014). Wood machining investigations: Parameters to consider for thorough experimentation. BioResources, 9(2), 4–7.
26.
Porankiewicz, B., & Wieloch, G. (2008). Drill wear during the boring of particle board: A multi-factor analysis including effects of mineral contaminants. BioResources, 3(2), 425–436.
27.
Sydor, M., Majka, J., & Langová, N. (2021). Effective Diameters of Drilled Holes in Pinewood in Response to Changes in Relative Humidity. BioResources, 16(3), 5407–5421. https://doi.org/10.15376/biore....
28.
Sydor, M., Majka, J., Rychlik, M., & Turbański, W. (2023). Application of 3D Scanning Method to Asses Mounting Holes Shape Instability of Pinewood. Materials, 16(5), 2053. https://doi.org/10.3390/ma1605....
29.
Sydor, M., Potok, Z., Pędzik, M., Hitka, M., & Rogoziński, T. (2024). The influence of feed rate during pilot hole drilling on screw withdrawal resistance in particleboard. European Journal of Wood and Wood Products, 82(1), 5–13. https://doi.org/10.1007/s00107....
30.
Sydor, M., Rogoziński, T., Stuper-Szablewska, K., & Starczewski, K. (2020). The Accuracy of Holes Drilled in the Side Surface of Plywood. BioResources, 15(1), 117–129. https://doi.org/10.15376/biore....
31.
Szwajka, K., & Trzepieciński, T. (2017). An examination of the tool life and surface quality during drilling melamine faced chipboard. Wood Research, 62(2), 307–318. Scopus.
32.
Szymani, R., & Dickinson, F. E. (1975). Recent developments in wood machining processes: Novel cutting techniques. Wood Science and Technology, 9(2), 113–128. https://doi.org/10.1007/BF0035....
33.
Turbański, W., Sydor, M., Matwiej, Ł., & Wiaderek, K. (2021). Moisture swelling and shrinkage of pine wood versus susceptibility to robotic assembly of furniture elements. Annals of Warsaw University of Life Sciences – SGGW, 115, 63–71. https://doi.org/10.5604/01.300....
34.
Uysal, M., & Haviarova, E. (2018). Estimating design values for two-pin moment resisting dowel joints with lower tolerance limit approach. BioResources, 13(3), 5241–5253. https://doi.org/10.15376/biore....
35.
Wilkowski, J., & Górski, J. (2011). Vibro-acoustic signals as a source of information about tool wear during laminated chipboard milling. Wood Research, 56(1), 57–66.
36.
Wilkowski, J., Jegorowa, A., Barlak, M., Werner, Z., Zagórski, J., Staszkiewicz, B., Kurek, J., & Kruk, M. (2022). Effect of Nitrogen Ion Implantation on the Tool Life Used in Particleboard CNC Drilling. Materials, 15(10), 3420. https://doi.org/10.3390/ma1510....
37.
Zhou, Y., Fushitani, M., & Kamdem, D. P. (2007). Bending Creep Behavior of Medium Density Fiberboard and Particleboard During Cyclic Moisture Changes. Wood and Fiber Science, 33, 609–617.
